| Name | MONADRIVE Elevator Gearless Traction Machine MDD480 Spare Parts |
| Product Type: | elevator component |
| Availability: | 6000pcs |
| Certificates: | ISO9001 |
| Warranty-Time: | 1 year |
| MOQ: | 1pcs |
| Payment: | TT |
| Delivery time: | 2-3 days after payment |
Product Description
MONADRIVE Elevator Gearless Traction Machine MDD480 Spare Parts
MONADRIVE elevator traction machine MDD480, Permanent magnet synchronous gearless traction machine.

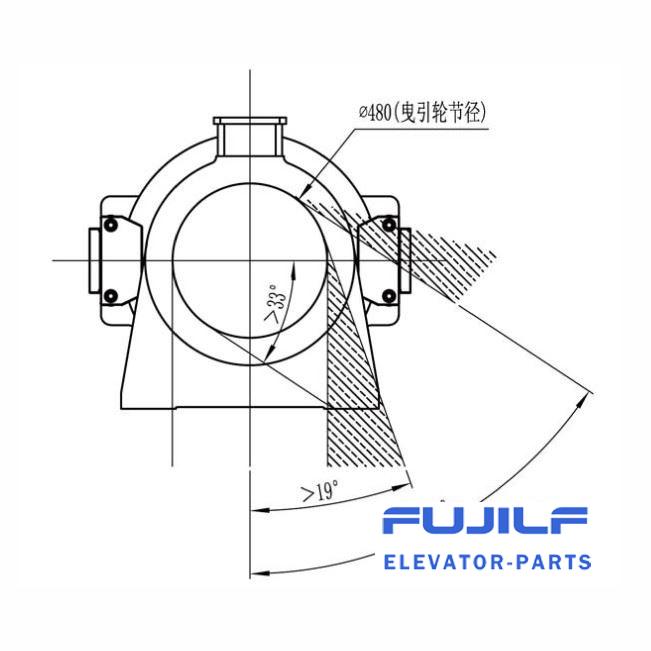

The angle of wire rope shall be within the range shown as above, while avoiding the shadow part.

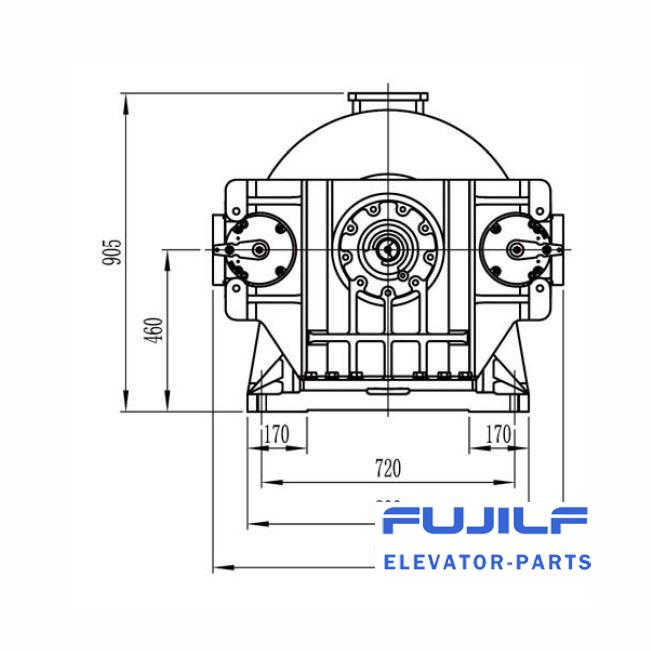

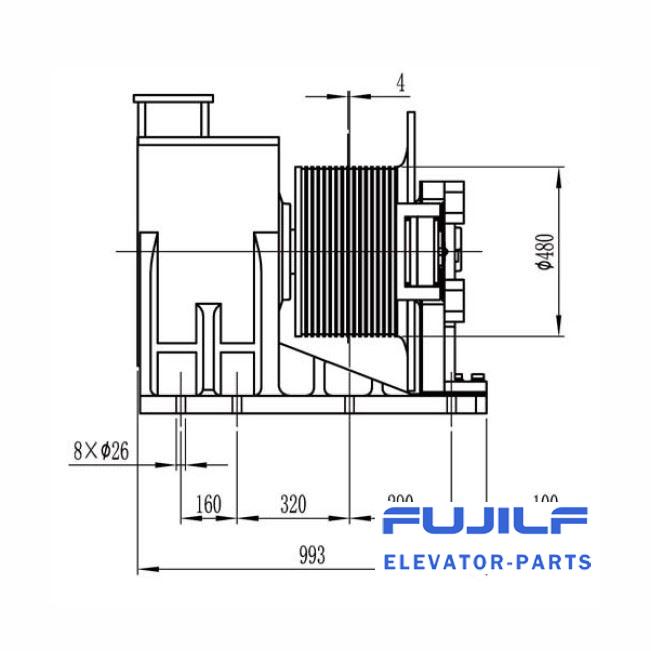

Product parameter (specification)
Voltage | 380V | Roping | 2:1 |
EIv.L oad | (1600~2000)kg | Elv.Speed | (2.5~5.0)m/s |
Sheave Diam | 480mm | Duty | S5-40% |
IP Code | IP41 | Max. Static Load | 20000kg |
Ins.Class | F | Weight | 950kg |
Brake | DC110V 2x2.2A | ||
