| Name | MONADRIVE Machine Roomless Elevator Traction Machine-Belt Type MGD100A |
| Product Type: | elevator component |
| Availability: | 6000pcs |
| Certificates: | ISO9001 |
| Warranty-Time: | 1 year |
| MOQ: | 1pcs |
| Payment: | TT |
| Delivery time: | 2-3 days after payment |
Product Description

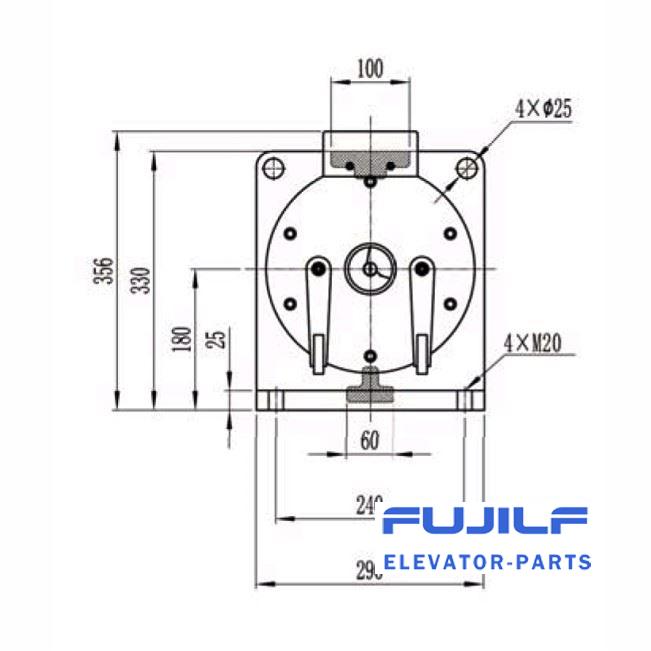

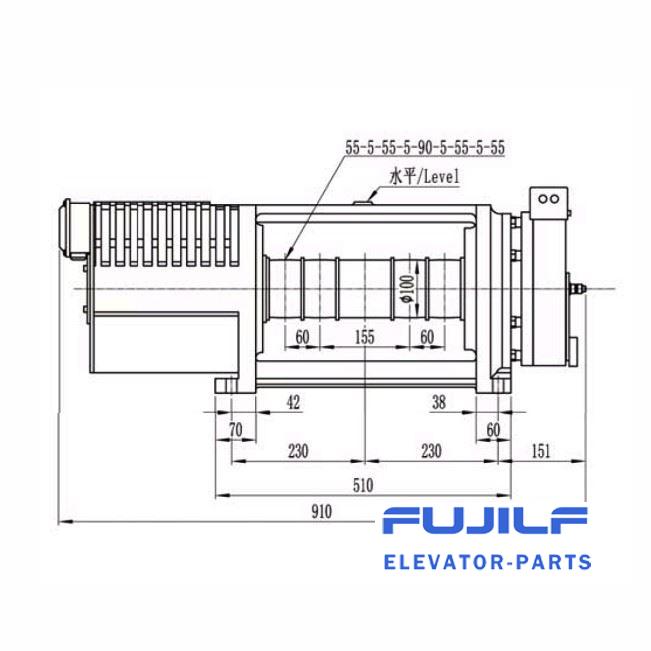

MONADRIVE Machine Roomless Elevator Traction Machine-Belt Type MGD100A
MONADRIVE elevator traction Machine-Belt type MGD100A, Permanent magnet synchronous gearless traction Machine-Belt type.
The machine is used for machine roomless.
Product parameter (specification)
Voltage | 380V | Roping | 2:1 |
EIv.L oad | (630~1050)kg | Elv.Speed | (0.5~1.75)m/s |
Sheave Diam | 100mm | Duty | S5-40% |
IP Code | IP41 | Max. Static Load | 3000kg |
Ins.Class | F | Weight | 210kg |
Brake | DC110V 2.4A | ||
1.The largest elevator parts company integrating warehousing with marketing.
2.Leading supplier and expoter in elevator parts industry.
3.We have various brands elevator parts,such as Kone,Otis,LG Sigma,Schindler,Toshiba,Thyssen and so on .
4.With the excellent after-saled service and warranty.
