Name	SB-1 Elevator Magnetic Switch FUJILF Elevator Components
Product Type:	escalator spareparts
Availability:	5000pcs
Certificates:	ISO9001
Warranty-Time:	1 year
MOQ:	1pcs
Payment:	TT
Delivery time:	2-3 days after payment

Product Description

SB-1 Elevator Magnetic Switch FUJILF Elevator Components

SB-1 Elevator Magnetic switch: cable outlet in the left or right
Application in elevator door, providing no contact signal transfer.
Power: 100~120W,voltage: 250VAC/DC,current:3.0A; shock-resistance:50G
Testing distance: 5mm--15mm;
Bi-stable door switch is with dust proof and explosion-proof plastic case,foreign-made reed
switch with original package,high life,;
Actuating magnet choice depends on actual environment conditions .

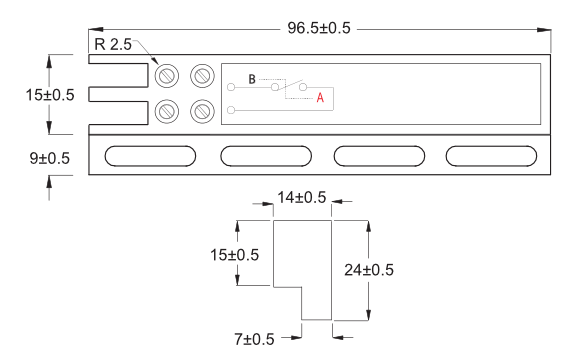

SB-1 (A/B) ELEVATOR MAGENETIC SWITCH
Switching capacity	Max	120 W/VA	Switching time	Max	3.5 ms
Switching voltage	Max	250V AC/DC	Bounce time	Max	0.5 ms
Switching current	Max	3A	Release time	Max	0.2 ms
Carrying current	Max	5A	Resonant frequency	type	900 Hz
Dielectric strength	Min	800V DC	Operating frequency	Max	100 Hz
Insulation resistance	Min	10 Ohm	Shock 11ms	Max	50 g
Operating principle	Magnetic		Testing distance	mm	5-15
Left cable outlet (SB-1A) and right cable (SB-1B) outlet for your choice
